Description
Application:

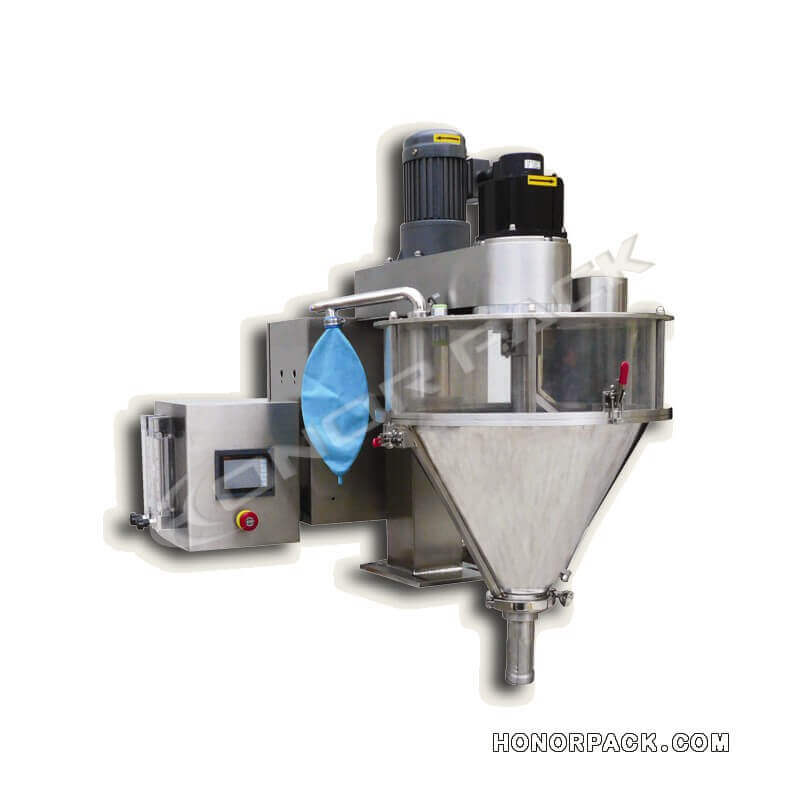

AFL series Auger Filler with servo motor driven, designed for dosing powder products, suit for a wide range of loose powdery products, such as flour, powdered milk, cocoa, icing sugar, baby food, ground spices, finely ground coffee, chemical products, etc.
With ability to Synchronization with most of automatic packing machine, it works to dosing, filling, sealing job. (Read more for Vertical Form Fill Seal With Auger Filler Packing System)
This Series Auger Filler equips side open hopper for easy cleaning, maintenance.
Features:
- SS 304 Frame, with hydraulic elevator, meets GMP request, also for some corrosive powder.
- Compact system, stable and durable.
- Low noise, maintenance free Servo motor driven, precious, fast, high torque, long life, speed adjustable.
- Air proof hopper, dust proof with easy nitric flushing. Discharge gate with dust collector.
| Additional Info | |
|---|---|
|
Working Method:
|
Auger Screw |
|
Auger Diameter:
|
22mm – 84mm (0.9″ – 3.3″) |
|
Packing Range:
|
10-1000 gram Change Auger |
|
Working Speed:
|
20 – 80 Discharge Per Min |
|
Accuracy:
|
≤+/-0.3-1% |
|
Voltage
|
3 Phrase 380v or Single Phrase 220v |
|
Power
|
0.9Kw Servo Motor For Auger: 1000W, Mixing Motor:200W. |
|
Weight:
|
130Kgs (286.6 lb.) |
|
Volume of Hopper:
|
50 Liter |
|
Dimension:
|
Refer to Product Pictures |
